Consumption Tokens

Consumption Tokens represent a usage-based licensing model that complements the existing License Token system in Babel Licensing. While License Tokens manage concurrent access by tracking who is using your software at any given time, Consumption Tokens track the volume of service usage over time, allowing for more flexible pricing models and detailed usage analytics.

Core Concepts

Consumption Tokens differ fundamentally from License Tokens in how they work and what they represent:

Permanent Consumption vs. Temporary Allocation

The most important distinction is that License Tokens represent a temporary allocation of a license to a specific client, while Consumption Tokens represent a permanent consumption of service resources:

• When a client disconnects, their License Token is returned to the pool and can be used by another client.
• When a service operation consumes Consumption Tokens, they are permanently deducted from the balance and cannot be reused.

Licensing Models Supported

Consumption Tokens enable two primary payment models:

Prepaid Token Model

The prepaid model supports two subscription variants:

Token-Based Prepaid

In the token-based prepaid variant, customers purchase a specific quantity of tokens upfront:

• A fixed number of tokens are added to the customer’s balance
• Tokens are deducted from their balance as services are used
• When the token balance reaches zero, service access may be restricted or additional tokens must be purchased
• Tokens may have expiration dates to encourage regular usage
• Well-suited for predictable budgeting and customers who understand their usage patterns

Money-Based Prepaid

In the money-based prepaid variant, customers prepay a monetary amount that is converted to tokens as needed:

• Customer pays a specific amount of money upfront (e.g., $1000)
• System tracks both the monetary balance and equivalent token value based on price per token
• As tokens are consumed, the monetary balance is reduced accordingly
• When the monetary balance reaches zero, service access may be restricted or additional funds must be added
• This approach is more intuitive for customers who prefer to think in terms of budget rather than tokens

Postpaid Token Model

In the postpaid model, usage is tracked throughout a billing period:

• Customers are billed at the end of the billing period based on actual usage
• Can include minimum usage commitments or tiered pricing based on volume
• Provides more flexibility for customers with variable usage patterns
• Ideal for enterprise customers who prefer regular billing cycles

Key Entity Properties

The TokenBalance entity includes these key properties for managing consumption tokens:

• Token Properties:
  • InitialTokenAmount - The initial number of tokens allocated
  • CurrentTokenBalance - The current number of tokens remaining (prepaid) or consumed (postpaid)
• Money-Based Properties:
  • IsMoneyBased - Indicates whether this is a money-based balance
  • InitialAmount - The initial monetary value for prepaid balances
  • CurrentBalance - The current monetary balance remaining or consumed
  • PricePerToken - The price per token for conversion calculations
  • Currency - The currency code (e.g., “USD”, “EUR”)
• Lifecycle Properties:
  • IsActive - Whether the balance is currently active
  • CreatedAt, UpdatedAt - Tracking timestamps
  • ExpiresAt - When the balance expires
  • PaymentModel - Prepaid (0) or Postpaid (1) as integer enum
• Billing Properties:
  • BillingPeriodStart, BillingPeriodEnd - For postpaid billing cycles
  • PackageType - Classification like “Standard”, “Enterprise”

Integration with License Tokens

Consumption Tokens and License Tokens work together in a complementary fashion:

1. Connection Process: When a client connects to the licensing server, a License Token is allocated from the available pool, enabling the concurrent usage tracking.
2. Operation Usage: As the client performs operations (API calls, processes data, etc.), Consumption Tokens are deducted from the customer’s balance based on the specific operation and its resource requirements.
3. Disconnection: When the client disconnects, the License Token is returned to the pool, but the consumed Consumption Tokens remain permanently used.

This integration allows for sophisticated licensing scenarios that consider both the number of concurrent users and the volume of service consumption.

Web Application

The Babel Licensing web application provides comprehensive management capabilities for consumption tokens through an intuitive interface designed for both administrators and license managers.

License Balance Association

Each floating license can be associated with one or more balance records that define how consumption tokens are handled for that specific license. The balance record contains essential information including:

• Consumption type: Whether the balance is token-based or money-based
• Initial and current balances: Starting amounts and remaining/consumed amounts
• Payment model: Prepaid or postpaid billing configuration
• Activation status: Flag to enable or disable the balance
• Billing period: Start and end dates for postpaid billing cycles
• Expiration settings: When the balance expires or renews

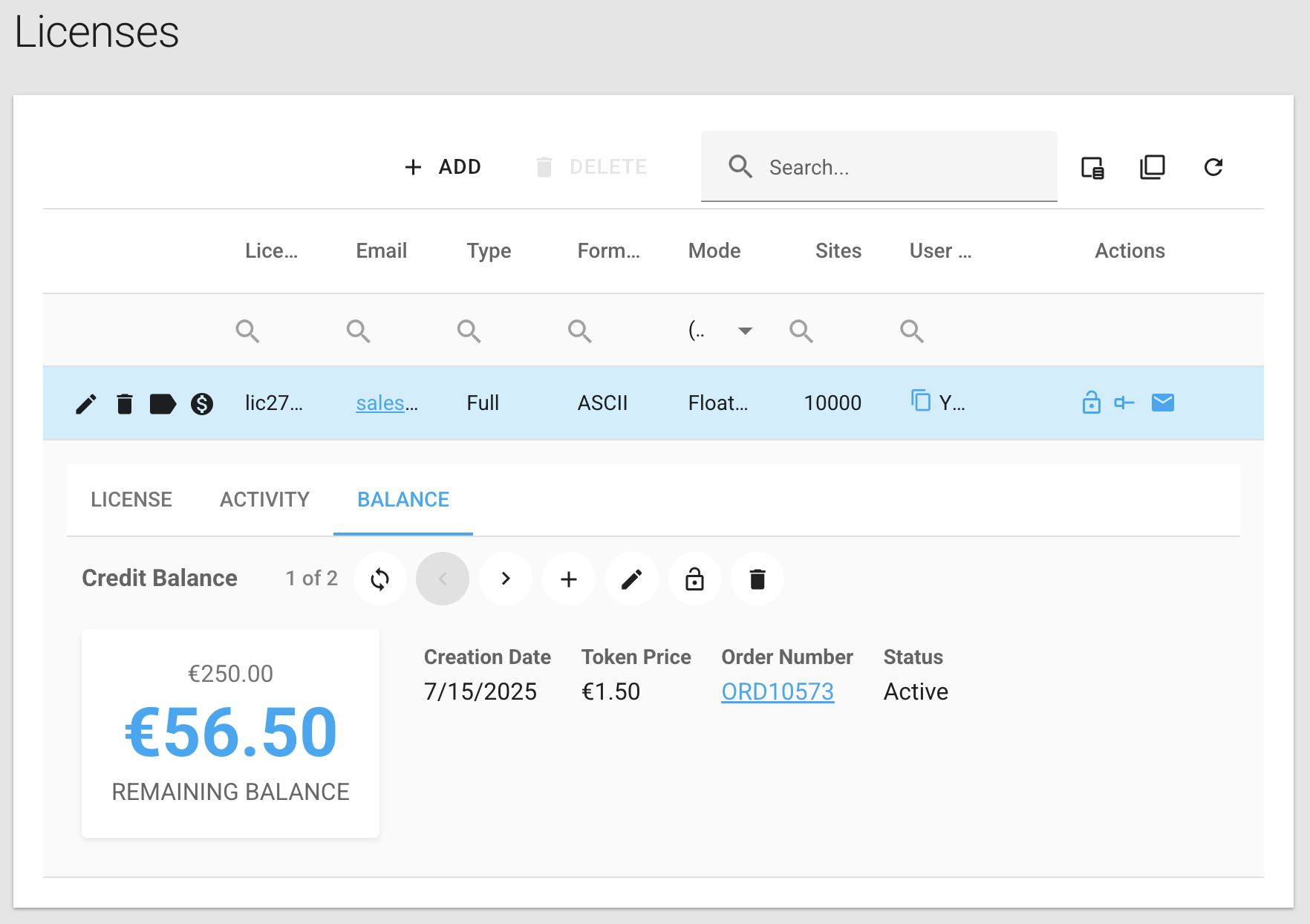

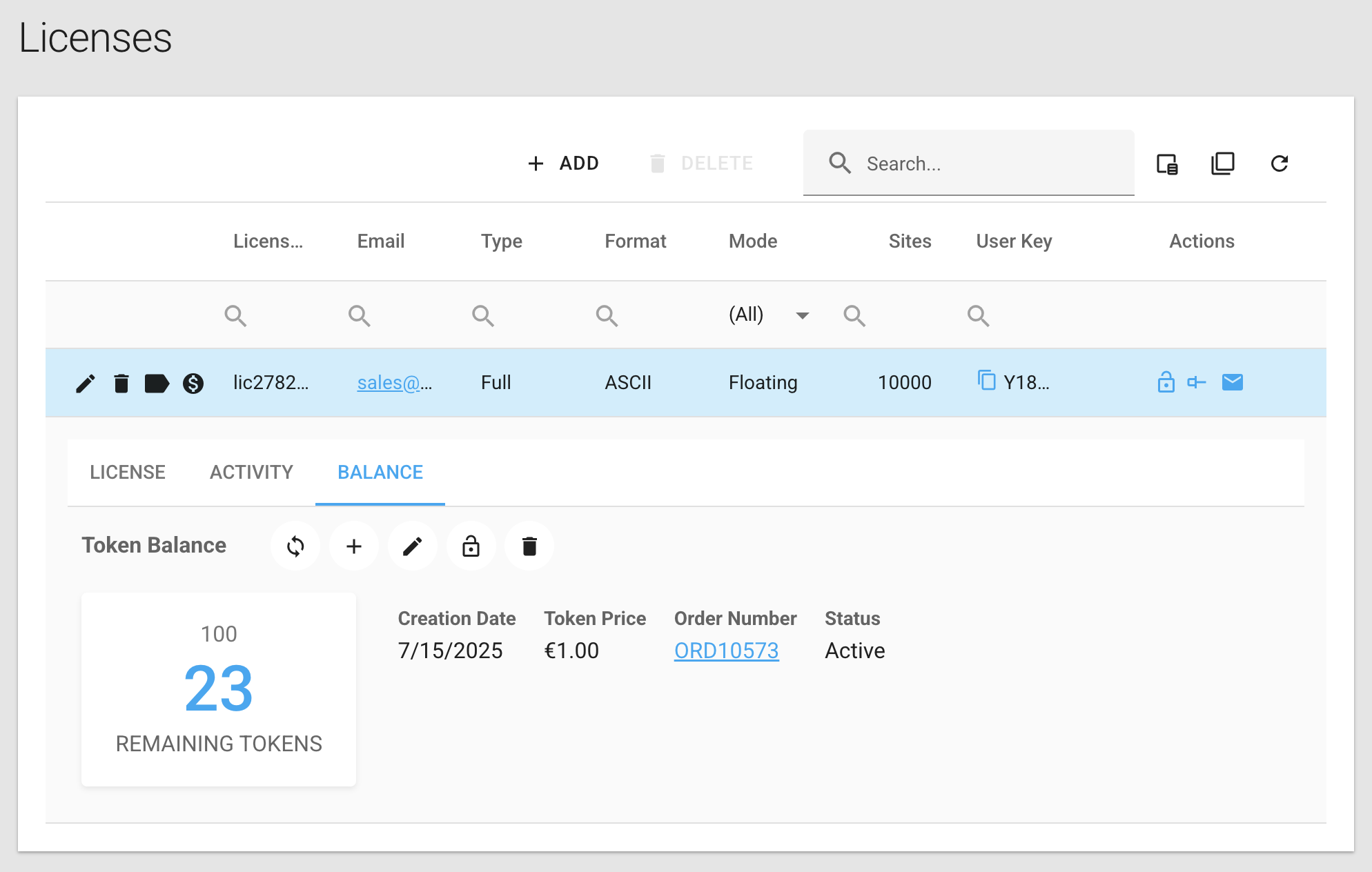

Balance Tab Interface

The web application integrates consumption token management directly into the license details view through a dedicated Balance tab. This tab displays comprehensive information about the currently active balance associated with the selected license, including:

• Current balance status: Display of remaining tokens or monetary balance
• Balance type indicators: Clear identification of prepaid vs. postpaid models
• Expiration information: Balance validity periods and renewal dates

Balance Management Actions

The interface provides several management actions through strategically placed control elements:

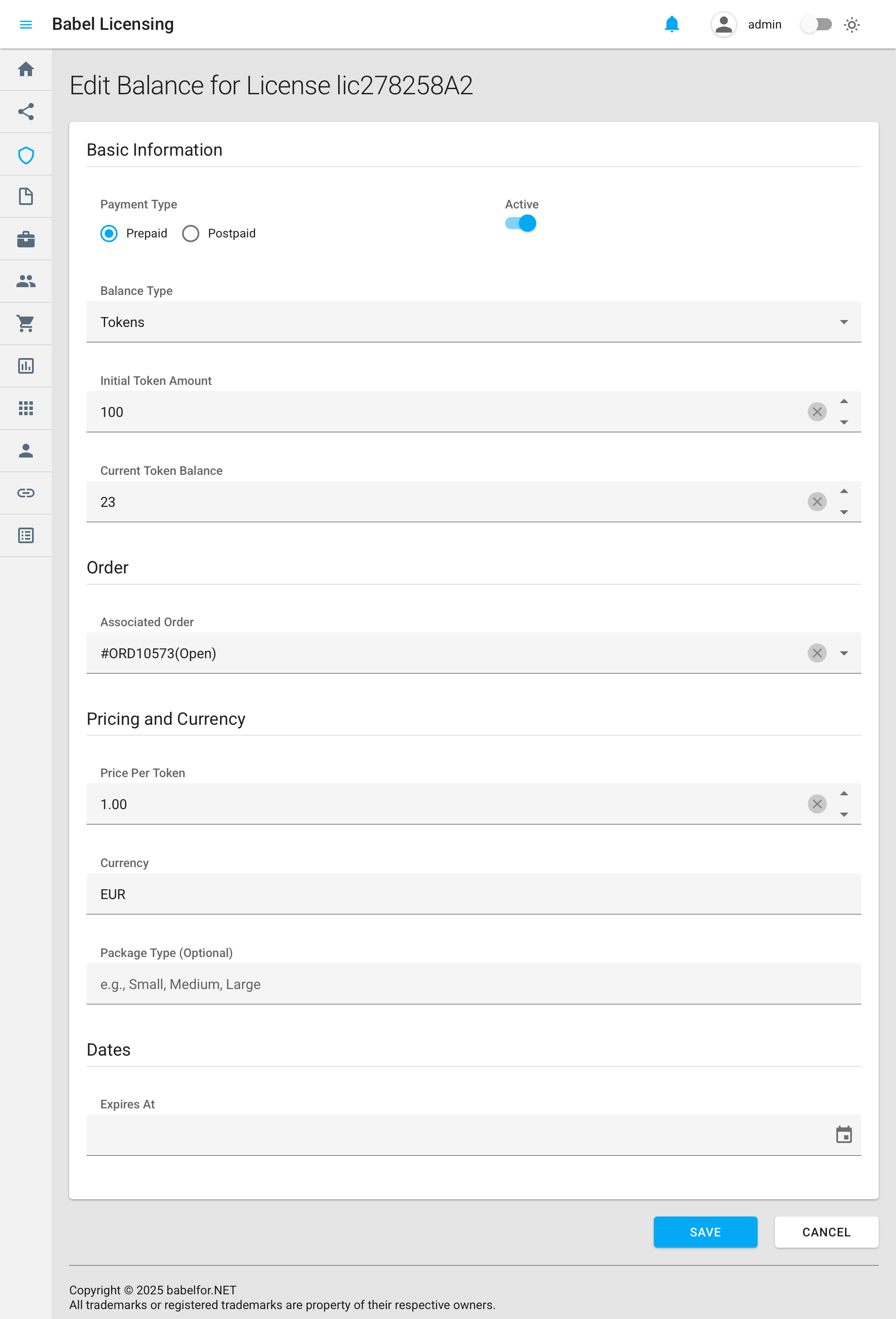

Editing Existing Balances

You can modify the current balance by clicking the + icon located within the Balance tab. This action opens the balance editor dialog where you can:

• Adjust the current token or monetary balance
• Update expiration dates and billing periods
• Modify consumption rates and restrictions
• Change payment model settings (prepaid/postpaid)
• Activate or deactivate the balance

Creating New Balances

To create a new balance record for a license, click the $ icon located in the license row on the main licenses page. This navigates to the dedicated balances management page where you can:

• Configure a completely new balance record
• Set initial token amounts or monetary values
• Define billing cycles and payment models
• Establish consumption rules and limits
• Associate the balance with specific license features

Configuration Options

The Consumption Token system offers several configuration options:

Token Consumption Rates

Token consumption rates determine how many tokens are deducted for each type of operation performed by your application. This granular control allows you to create pricing models that accurately reflect the resource cost and business value of different operations.

Available Operation Types

The system supports configurable token consumption for four key operation types:

// Token consumption rates configuration
public long RequiredTokensOnRequest { get; set; }      // License acquisition requests
public long RequiredTokensOnValidation { get; set; }   // License validation checks
public long RequiredTokensOnRelease { get; set; }      // License release operations
public long RequiredTokensOnHeartbeat { get; set; }    // Heartbeat/keep-alive messages

Operation-Specific Considerations

License Requests (RequiredTokensOnRequest)

• Consumed when a client requests a new license token
• Typically the highest token cost as it represents initial service access
• Consider setting higher rates for premium features or enterprise tiers

License Validations (RequiredTokensOnValidation)

• Consumed during periodic license validation checks
• Usually set to a lower rate since validations are frequent
• Balance between security (frequent validation) and cost efficiency

License Releases (RequiredTokensOnRelease)

• Consumed when a client explicitly releases a license token
• Often set to zero or minimal cost to encourage proper cleanup
• May be used to track graceful disconnections vs. timeouts

Heartbeat Operations (RequiredTokensOnHeartbeat)

• Consumed for keep-alive messages that maintain active sessions
• Typically the lowest rate since heartbeats are very frequent
• Consider setting to zero for basic connectivity maintenance

Configuration Examples

Basic Configuration - Equal consumption across all operations:

TokenUsageSettings = new TokenUsageSettings()
{
    RequiredTokensOnRequest = 1,
    RequiredTokensOnValidation = 1,
    RequiredTokensOnRelease = 1,
    RequiredTokensOnHeartbeat = 1
}

Value-Based Configuration - Higher cost for initial access:

TokenUsageSettings = new TokenUsageSettings()
{
    RequiredTokensOnRequest = 10,      // Higher cost for license acquisition
    RequiredTokensOnValidation = 2,    // Moderate cost for validation
    RequiredTokensOnRelease = 0,       // Free to encourage proper cleanup
    RequiredTokensOnHeartbeat = 1      // Minimal cost for heartbeat
}

High-Frequency Configuration - Optimized for applications with frequent operations:

TokenUsageSettings = new TokenUsageSettings()
{
    RequiredTokensOnRequest = 50,      // Premium cost for initial access
    RequiredTokensOnValidation = 1,    // Low cost for frequent validations
    RequiredTokensOnRelease = 0,       // Free cleanup
    RequiredTokensOnHeartbeat = 0      // Free heartbeat to reduce noise
}

Implementation Example

The following example shows how to configure Babel Licensing with custom token consumption rates:


using Babel.Licensing;
using Babel.Licensing.Service;

// Create a new configuration object
BabelLicensingConfiguration config = new BabelLicensingConfiguration()
{
    // Set the service URL
    // ServiceUrl = "http://localhost:5005/", // GRPC
    ServiceUrl = "http://localhost:5000/", // HTTP

    // Set the public key used to verify the license signature
    SignatureProvider = RSASignature.FromKeys("MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQDE1VRiIdr6fiVZKve7NVgjIvGdRiRx0Mjjm+Yzf6tLbzFnxLs0fat5EoRcubxx0QQQDfydsJBE/fc7cwRWSrE2xK6X4Eb4W8O47pCMjqvTQZfDqQywEZJrLlxpp9hlKz6FDYX4SagrjmP1gdw8olo+n+IBz8ubkNxRhvycikxuDQIDAQAB"),

    // Set a unique client ID in case multiple instances of the application are running on the same machine
    ClientId = Guid.NewGuid().ToString(),

    TokenUsageSettings = new TokenUsageSettings() {
        RequiredTokensOnRequest = 1,
        RequiredTokensOnValidation = 1,
        RequiredTokensOnRelease = 1
    }
};

config.UseHttp(http => {
    // Configure the HttpClient
    http.Handler = new HttpClientHandler() {
        // Allow self-signed certificates
        ServerCertificateCustomValidationCallback = (message, cert, chain, errors) => true
    };
});

// Create the client object used to communicate with the server
BabelLicensing client = new BabelLicensing(config);

// Ask the user to activate the license
Console.WriteLine("Please enter your floating license key: ");
string? userKey = Console.ReadLine();

try
{
    var result = await client.RequestFloatingLicenseAsync(userKey, typeof(Program));

    Console.WriteLine($"License {result.License.Id} requested.");
}
catch (Exception ex)
{
    Console.WriteLine($"Could not request floating license: {ex.Message}");
    return;
}

try
{
    // Simulate a long task which requires the allocation of a license
    for (int i = 0; i < 100; i++)
    {
        try
        {
            // Validate the license
            // This will contact the server to validate the license
            var result = await client.ValidateLicenseAsync(userKey, typeof(Program));
            Console.WriteLine($"{i}) License {result.License.Id} valid.");
        }
        catch (ServiceException ex)
        {
            Console.WriteLine($"Service error: {ex.Message} ({ex.ErrorCode})");
            return;
        }
        catch (Exception ex)
        {
            Console.WriteLine($"Could not validate license: {ex.Message}");
            return;
        }

        // Wait 1 second
        await Task.Delay(200);
    }

    try
    {
        // When the application is done with the license, it can release it
        await client.ReleaseFloatingLicenseAsync(userKey);
        Console.WriteLine("License released.");
    }
    catch (Exception ex)
    {
        Console.WriteLine($"Could not release license: {ex.Message}");
    }
}
catch (Exception ex)
{
    Console.WriteLine($"License not valid: {ex.Message}");
    return;
}

Best Practices for Rate Configuration

1. Start Conservative: Begin with lower rates and increase based on usage patterns and business needs
2. Monitor Usage: Track actual consumption patterns to identify optimization opportunities
3. Consider User Experience: Avoid making basic operations prohibitively expensive
4. Align with Value: Set rates proportional to the business value or computational cost of operations
5. Document Changes: Clearly communicate rate changes to customers in advance
6. Test Thoroughly: Validate rate configurations in staging environments before production deployment

Usage Tracking and Reporting

One of the key benefits of Consumption Tokens is the detailed usage data they provide:

What is Tracked

For each token consumption event, the system records:

• Client identifier and machine information
• Operation type and timestamp
• Number of tokens consumed
• Duration and request metrics
• Associated license information

Common Usage Scenarios

Consumption Tokens are particularly well-suited for:

• SaaS Applications: Track and bill for actual usage rather than seat licenses
• API Services: Charge based on the number and type of API calls made
• Processing Services: Bill for computational resources used for data processing
• Mixed-Use Applications: Support both casual users (pay-as-you-go) and power users (subscription + consumption)
• Tiered Service Levels: Charge different rates for standard vs. premium features

Error Handling

The consumption token system provides comprehensive error handling for various scenarios:

Token Consumption Errors

When recording consumption with RecordConsumptionAsync:

• ServiceException(ServiceErrorCode.BadRequest) - Tokens consumed must be greater than zero
• ServiceException(ServiceErrorCode.ResourceInvalidState) - No active token balance found or billing period issues
• ServiceException(ServiceErrorCode.ResourceExhausted) - Insufficient tokens or monetary balance for consumption
• ServiceException(ServiceErrorCode.ServerError) - Database operation failures

Consumption History Errors

When retrieving consumption data:

• ServiceException(ServiceErrorCode.ResourceNotFound) - Token balance or license not found
• ServiceException(ServiceErrorCode.BadRequest) - Invalid date range (start date greater than end date)
• ServiceException(ServiceErrorCode.ServerError) - Database query failures

Token Balance Management Errors

When managing token balances:

• ServiceException(ServiceErrorCode.ResourceNotFound) - Token balance or license not found
• ServiceException(ServiceErrorCode.ResourceAlreadyExists) - Active prepaid balance already exists
• ServiceException(ServiceErrorCode.BadRequest) - Invalid operation parameters (e.g., negative tokens)
• ServiceException(ServiceErrorCode.ResourceInvalidState) - Cannot perform operation due to balance state

Best Practices

When implementing Consumption Tokens in your licensing strategy:

1. Start with Clear Communication: Ensure customers understand how tokens are consumed and billed
2. Begin with Tracking Only: Consider starting with non-enforced tracking before implementing strict token requirements
3. Set Appropriate Rates: Align token consumption rates with actual value delivered or resources consumed
4. Provide Usage Visibility: Give customers tools to monitor their own token consumption
5. Consider Grace Periods: Implement policies for handling depleted token balances that don’t immediately cut off service
6. Optimize for Common Patterns: Structure your token packages based on typical customer usage patterns

Migration Strategies

If you’re adding Consumption Tokens to an existing License Token implementation:

1. Parallel Running: Start by running both systems in parallel, with Consumption Tokens in tracking-only mode
2. Customer Education: Educate customers about the new model and its benefits
3. Gradual Enforcement: Slowly introduce token enforcement, starting with non-critical operations
4. Flexible Conversion: Offer flexible options for customers to convert between traditional licensing and token-based models

Related Documentation

For more information, refer to:

• License Tokens - Understanding the License Token system
• Floating License - How floating licenses work with License Tokens
